For packing purposes, the IMDG Code assigns substances to three packing groups according to the degree of danger they present (2.0.1.3). The packing group of each entry is in column 5 of the Dangerous Goods List (3.2.1).
| Packing group | Degree of danger |
|---|---|
| I | Substances presenting high danger |
| II | Substances presenting medium danger |
| III | Substances presenting low danger |
Which classes have packing groups
| Class | Packing groups | Criteria in |
|---|---|---|
| 1 Explosives | Not assigned | |
| 2 Gases | Not assigned | |
| 3 Flammable liquids | I, II, III | 2.3.2 |
| 4.1 Flammable solids | I, II, III. The tests in 2.4.2.2.3 assign II or III to flammable solids; some solid desensitized explosives show packing group I in the Dangerous Goods List. Self-reactive substances: not assigned | 2.4.2.2.3 |
| 4.2 Substances liable to spontaneous combustion | I, II, III | 2.4.3.3 |
| 4.3 Substances which, in contact with water, emit flammable gases | I, II, III | 2.4.4.3 |
| 5.1 Oxidizing substances | I, II, III | 2.5.2.2.2, 2.5.2.3.2 |
| 5.2 Organic peroxides | Not assigned | |
| 6.1 Toxic substances | I, II, III | 2.6.2.2 |
| 6.2 Infectious substances | Not assigned | |
| 7 Radioactive material | Not assigned | |
| 8 Corrosive substances | I, II, III | 2.8.3 |
| 9 Miscellaneous | As shown in column 5 of the Dangerous Goods List. For example UN 2315 is II, UN 3077 is III and UN 1845 has none |
Articles are not assigned to packing groups. Where an article needs a specific packaging performance level, the applicable packing instruction sets it out (2.0.1.3).
Class 3: flammable liquids
Flammable liquids are grouped according to flashpoint, boiling point and viscosity (2.3.2.6).
| Packing group | Flashpoint (closed-cup) | Initial boiling point |
|---|---|---|
| I | – | ≤ 35°C |
| II | < 23°C | > 35°C |
| III | ≥ 23°C to ≤ 60°C | > 35°C |
Viscous flammable liquids such as paints, enamels, lacquers, varnishes, adhesives and polishes with a flashpoint below 23°C may be placed in packing group III (2.3.2.2), provided that:
| Condition | Requirement |
|---|---|
| .1 | Viscosity and flashpoint are in accordance with the table below |
| .2 | Less than 3% of the clear solvent layer separates in the solvent separation test |
| .3 | The mixture or any separated solvent does not meet the criteria for class 6.1 or class 8 |
| .4 | The substances are packed in receptacles of not more than 450 L capacity |

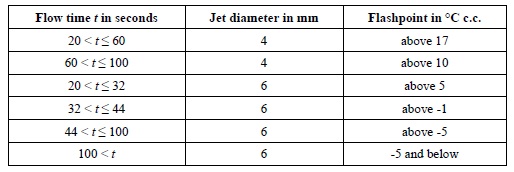

| Kinematic viscosity (extrapolated) ν, mm²/s at 23°C | Flow-time t, seconds | Jet diameter, mm | Flashpoint (closed-cup), °C |
|---|---|---|---|
| 20 < ν ≤ 80 | 20 < t ≤ 60 | 4 | above 17 |
| 80 < ν ≤ 135 | 60 < t ≤ 100 | 4 | above 10 |
| 135 < ν ≤ 220 | 20 < t ≤ 32 | 6 | above 5 |
| 220 < ν ≤ 300 | 32 < t ≤ 44 | 6 | above -1 |
| 300 < ν ≤ 700 | 44 < t ≤ 100 | 6 | above -5 |
| 700 < ν | 100 < t | 6 | no limit |
Substances classified as flammable liquids because they are transported or offered for transport at elevated temperatures are in packing group III (2.3.2.4). For a liquid with additional hazards, the grouping from flammability and the grouping from the additional hazard are both considered under chapter 2.0 (2.3.2.1.2).
Class 4.1: flammable solids
These are the test-based criteria of 2.4.2.2.3. Solid desensitized explosives such as UN 1310 AMMONIUM PICRATE, WETTED with not less than 10% water, by mass, are also class 4.1 and take the packing group shown in the Dangerous Goods List, which is I for that entry.
| Substance | Packing group | Criterion |
|---|---|---|
| Readily combustible solids (other than metal powders) | II | Burning time is less than 45 s and the flame passes the wetted zone |
| Metal powders | II | Zone of reaction spreads over the whole length of the sample in five minutes or less |
| Readily combustible solids (other than metal powders) | III | Burning time is less than 45 s and the wetted zone stops the flame propagation for at least four minutes |
| Metal powders | III | Reaction spreads over the whole length of the sample in more than five minutes but not more than 10 minutes |
| Solids which may cause fire through friction | By analogy | Assigned by analogy with existing entries or in accordance with any appropriate special provision |
Class 4.2: substances liable to spontaneous combustion
| Substance | Packing group | Criterion |
|---|---|---|
| Pyrophoric solids and liquids | I | All pyrophoric solids and liquids |
| Self-heating substances | II | Positive result in a test using a 25 mm cube sample at 140°C |
| Self-heating substances | III | Positive at 140°C with a 100 mm cube and negative at 140°C with a 25 mm cube, and one of the following: .1 the substance is to be transported in packages with a volume of more than 3 m³; .2 positive at 120°C with a 100 mm cube, and the substance is to be transported in packages with a volume of more than 450 L; .3 positive at 100°C with a 100 mm cube. |
Class 4.3: substances which, in contact with water, emit flammable gases
| Packing group | Criterion |
|---|---|
| I | Reacts vigorously with water at ambient temperatures and demonstrates generally a tendency for the gas produced to ignite spontaneously; or reacts readily with water at ambient temperatures such that the rate of evolution of flammable gas is equal to or greater than 10 L per kilogram of substance over any one minute |
| II | Reacts readily with water at ambient temperatures such that the maximum rate of evolution of flammable gas is equal to or greater than 20 L per kilogram of substance per hour, and does not meet the criteria for packing group I |
| III | Reacts slowly with water at ambient temperatures such that the maximum rate of evolution of flammable gas is greater than 1 L per kilogram of substance per hour, and does not meet the criteria for packing groups I or II |
Class 5.1: oxidizing substances
Solids are assigned according to one of two tests, O.1 or O.3, in the 4:1 or 1:1 sample-to-cellulose ratio by mass (2.5.2.2.2).
| Packing group | Test O.1: mean burning time compared with potassium bromate and cellulose | Test O.3: mean burning rate compared with calcium peroxide and cellulose |
|---|---|---|
| I | Less than that of a 3:2 mixture | Greater than that of a 3:1 mixture |
| II | Equal to or less than that of a 2:3 mixture, and packing group I criteria not met | Equal to or greater than that of a 1:1 mixture, and packing group I criteria not met |
| III | Equal to or less than that of a 3:7 mixture, and packing group I and II criteria not met | Equal to or greater than that of a 1:2 mixture, and packing group I and II criteria not met |
| Not class 5.1 | Does not ignite and burn in both ratios, or mean burning times greater than that of a 3:7 mixture | Does not ignite and burn in both ratios, or mean burning rate less than that of a 1:2 mixture |
Liquids are tested as a 1:1 mixture by mass of substance and cellulose (2.5.2.3.2.1).
| Packing group | Criterion for liquids |
|---|---|
| I | Spontaneously ignites; or mean pressure rise time less than that of a 1:1 mixture of 50% perchloric acid and cellulose |
| II | Mean pressure rise time less than or equal to that of a 1:1 mixture of 40% aqueous sodium chlorate solution and cellulose, and packing group I criteria not met |
| III | Mean pressure rise time less than or equal to that of a 1:1 mixture of 65% aqueous nitric acid and cellulose, and packing group I and II criteria not met |
| Not class 5.1 | Pressure rise of less than 2070 kPa gauge; or mean pressure rise time greater than that of a 1:1 mixture of 65% aqueous nitric acid and cellulose |
Class 6.1: toxic substances
Oral ingestion, dermal contact and inhalation of dusts and mists (2.6.2.2.4.1):
| Packing group | Oral toxicity LD50 (mg/kg) | Dermal toxicity LD50 (mg/kg) | Inhalation toxicity by dusts and mists LC50 (mg/L) |
|---|---|---|---|
| I | ≤ 5.0 | ≤ 50 | ≤ 0.2 |
| II | > 5.0 and ≤ 50 | > 50 and ≤ 200 | > 0.2 and ≤ 2.0 |
| III | > 50 and ≤ 300 | > 200 and ≤ 1,000 | > 2.0 and ≤ 4.0 |
Liquids having toxic vapours, where V is the saturated vapour concentration in mL/m³ of air at 20°C and standard atmospheric pressure (2.6.2.2.4.3):
| Packing group | Criterion |
|---|---|
| I | V ≥ 10 LC50 and LC50 ≤ 1,000 mL/m³ |
| II | V ≥ LC50 and LC50 ≤ 3,000 mL/m³, and packing group I criteria not met |
| III | V ≥ 1/5 LC50 and LC50 ≤ 5,000 mL/m³, and packing group I and II criteria not met |
Tear gas substances are included in packing group II even if their toxicity data correspond to packing group III values. When a substance shows a different order of toxicity by two or more routes, the highest degree of danger is used (2.6.2.2.3.1).
Class 8: corrosive substances
| Packing group | Exposure time | Observation period | Effect |
|---|---|---|---|
| I | ≤ 3 min | ≤ 60 min | Irreversible damage of intact skin |
| II | > 3 min and ≤ 1 h | ≤ 14 days | Irreversible damage of intact skin |
| III | > 1 h and ≤ 4 h | ≤ 14 days | Irreversible damage of intact skin |
| III | – | – | Corrosion rate on either steel or aluminium surfaces exceeding 6.25 mm a year at a test temperature of 55°C when tested on both materials |
This is table 2.8.3.4, which summarizes the criteria in 2.8.3.3.
Where the packing group is used
| Place | How | Reference |
|---|---|---|
| Dangerous Goods List | Column 5 shows the packing group number, I, II or III, where assigned to the substance. | 3.2.1 |
| Packaging marks | The UN mark carries a letter for the packing groups the design type has been tested for: X for packing groups I, II and III; Y for packing groups II and III; Z for packing group III only. | 6.1.3.1 (c) |
| Transport document | Where assigned, the packing group is the fifth element of the dangerous goods description. It may be preceded by “PG”. | 5.4.1.4.1 |
A packaging marked Y has been tested for packing groups II and III, not for packing group I.
Based on IMDG Code Amendment 42-24. Revised 14 November 2026.
